TAP C2 80 Dispenser

Product detailed description

High-capacity and comfortable soda dispenser TAP C2 80 with an elegant tap stand featuring two stainless steel taps. The compact soda dispenser can be easily placed under the kitchen counter. Thanks to the high capacity of the unit, you have 80 liters of water available per hour.

You can choose from two variants:

• AC - room temperature and chilled
• CS - chilled and sparkling

ADVANTAGES:

• high capacity of the soda dispenser
• low energy consumption
• compact size of the unit
• elegant, minimalist design
• discreet, hygienic control panel
• easy to use

PACKAGE CONTENT:

• cooling unit
• tap

WATER DISPENSING:

• chilled and room temperature
• chilled and sparkling

TECHNICAL PARAMETERS:

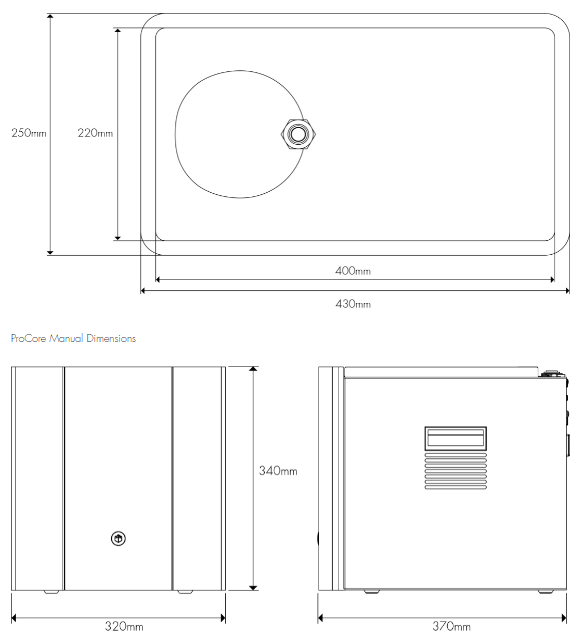

• • Dimensions of the soda dispenser (w x d x h): 320 x 345 x 335 mm

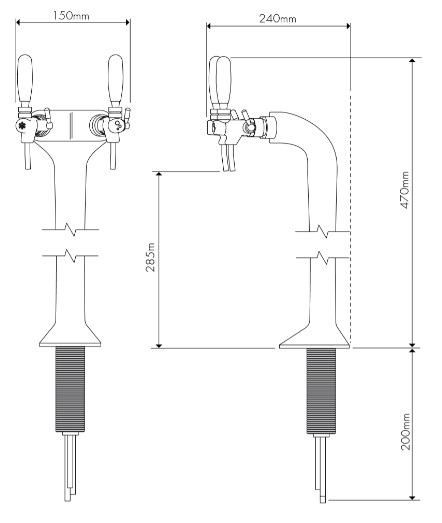

  • Height of the tap: 470 mm
  • Maximum power consumption: 0.5 kW
  • Material: stainless steel
  • Direct cooling
  • Voltage: 50 Hz/ 240 V
  • Temperature of chilled water: Min 2°C/Max 11°C
  • Water dispensing rate: 80 l/h
  • a drawing A3 is included for the cutout hole for the drip tray in the countertop

You should know:

• CO2 bottle and CO2 pressure reducer are not included with the dispenser.
• Drip tray is not included in the package.
• Maximum water pressure: 4 bar
  • If water pressure exceeds 4 bars, it is necessary to equip the unit with a pressure reducer; we recommend pressure reducer with manometer
  • If water pressure exceeds 3 bars, we recommend purchasing Hunter pressure reducer

CO₂ cylinder specifications:

• 2 kg - dimensions: 540 mm height, 104 mm diameter - approx. 280 L of sparkling water
• 6 kg - dimensions: 560 mm height, 178 mm diameter - approx. 845 L of sparkling water
• 10 kg - dimensions: 670 mm height, 200 mm diameter - approx. 1,410 L of sparkling water

Recommendations for filtration (not included with the dispenser):

• Antibacterial carbon filter with silver AQL 88 or carbon filter with hardness water scale reduction for hard input water AQL 90.

Service replacements are performed once every 6 months depending on water consumption.
