Soda Maker PERLA mini 2

Product detailed description

PERLA mini 2 Soda Dispenser is one of our luxury models, suitable for representative rooms, offices, restaurants, and more. The PERLA mini 2 soda dispenser, with a performance of 35 liters per hour, allows dispensing of 4 types of drinks - room temperature, chilled, lightly carbonated, and sparkling water. Its appearance complements any modern interior.

The water dispensing in the PERLA mini 2 is ensured by an electromagnetic valve; the operation is handled via a very unconventional and impressive glass panel with backlit pictograms and buttons, located on the front side of the device.

Advantages

• Easy operation
• Direct connection to the water supply
• Powerful antibacterial filtration – carbon filter with silver or hard water filtration to eliminate limescale formation
• Progressive and modern design
• Robust construction
• Stainless steel body
• Choice of 4 types of drinks
• We provide installation and service exchanges through our service technicians throughout the Czech Republic and Slovakia

Technical Specifications

• performance 35 l/h
• dimensions W/D/H (mm): 275/477/460
• height for bottle placement: 27 cm
• weight: 35 kg
• dispensing: unchilled, chilled, lightly carbonated, and chilled sparkling water
• inputs: 1x CO2 (3/8" hose) + 1x water (3/8" hose)
• water: water supply - connection to a 1/2" threaded faucet (preferably within 5m from the soda dispenser), water at the inlet must meet pressure and quality criteria
• gas: CO2 - pressure cylinder - height is 80 cm and weight 6 kg. A fully filled cylinder lasts for approximately 10,000 liters of sparkling water. Due to the lack of a stand, it is necessary to place the cylinder next to the device
• electricity: standard electrical outlet (up to 1.5m from the soda dispenser) 220 - 240 W / 50Hz
• cooling compressor power: 1/5 HP
• Maximum water pressure: 4 bar
  • If the water pressure exceeds 4 bars, it is necessary to equip the device with a pressure regulating valve; we recommend a pressure reducing valve with a manometer
  • If the water pressure exceeds 3 bars, we recommend purchasing a Hunter pressure regulating valve

The soda dispenser comes with a drip tray.

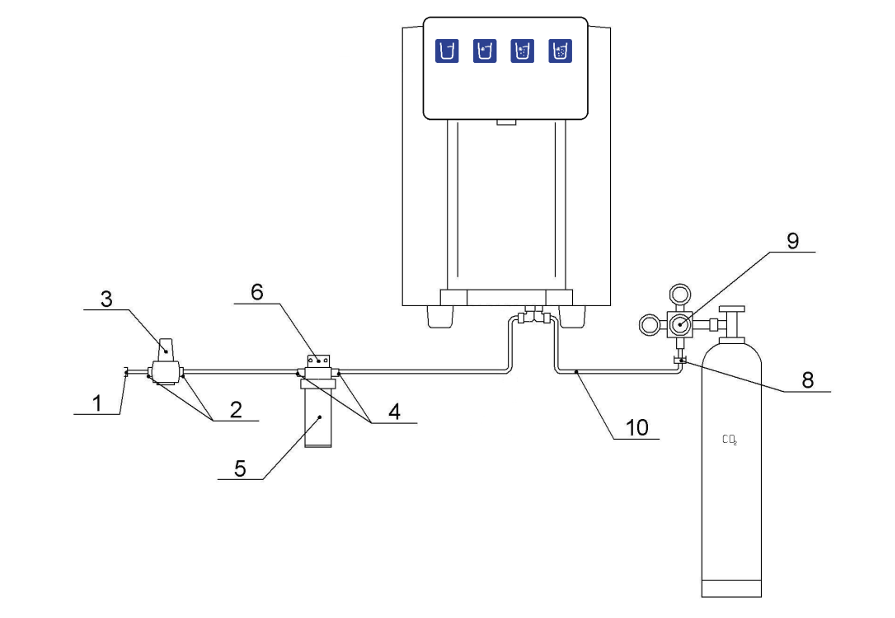

For connecting the soda dispenser, the following is needed:

Description:

1. 3/8-1/2 BSP male quick-connect fitting
2. 3/8-3/8 BSPT male-to-male coupling
3. H2O pressure reducing valve
4. 3/8-3/8 BSPT male-to-male coupling
5. H2O filter
6. Filter holder
8. 3/8" or 5/16" - 1/4" MFL quick-connect fitting
9. CO2 pressure regulator
10. Calibrated 3/8" or 5/16" hose
