Soda Maker PERLA mini 1

Product detailed description

The PERLA mini 1 Soda Dispenser is one of our luxury models, suitable for representative rooms, offices, restaurants, etc. The PERLA mini 1 soda dispenser, with a capacity of 17 liters per hour, allows dispensing of 4 types of beverages - room temperature, chilled, sparkling, and lightly sparkling chilled water. Its appearance complements any modern interior.

The PERLA soda dispensers are controlled via a glass touch panel with backlit buttons – pictograms located on the glass touch panel.

Advantages

• Simple operation
• Direct connection to the water supply
• Powerful antibacterial filtration – carbon filter with silver or hard water filtration to eliminate scale formation
• Advanced and modern appearance
• Robust construction
• Stainless steel casing
• Choice of 4 types of beverages
• We provide installation and service exchanges through our service technicians throughout the Czech Republic and Slovakia

Technical Specifications

• Capacity 17 l/h
• Dimensions W/H/D (mm): 250 / 417 / 444 mm
• Weight: 23 kg
• Dispensing: unchilled, chilled, lightly sparkling, and sparkling chilled water
• Inputs: 1x CO2 (3/8" hose) + 1x water (3/8" hose)
• Water: water supply - connection to a tap with a 1/2" thread (preferably within 5m from the soda dispenser), input water must meet pressure and quality criteria
• Gas: CO2 - a 6 kg pressure bottle is sufficient for approximately 10,000 liters of sparkling water. Due to the absence of a stand, the bottle must be placed next to the device
• Electricity: standard electrical socket (within 1.5m from the soda dispenser) 220 - 240 W / 50Hz
• Cooling compressor power: 1/8 HP
• Maximum water pressure: 4 bar
  • In case of water pressure above 4 bars, it is necessary to equip the automatic with a pressure reducing valve; we recommend a reducing valve with a manometer.
  • In case of water pressure above 3 bars, it is recommended to purchase a Hunter pressure reducing valve.

The soda dispenser comes with a drip tray.

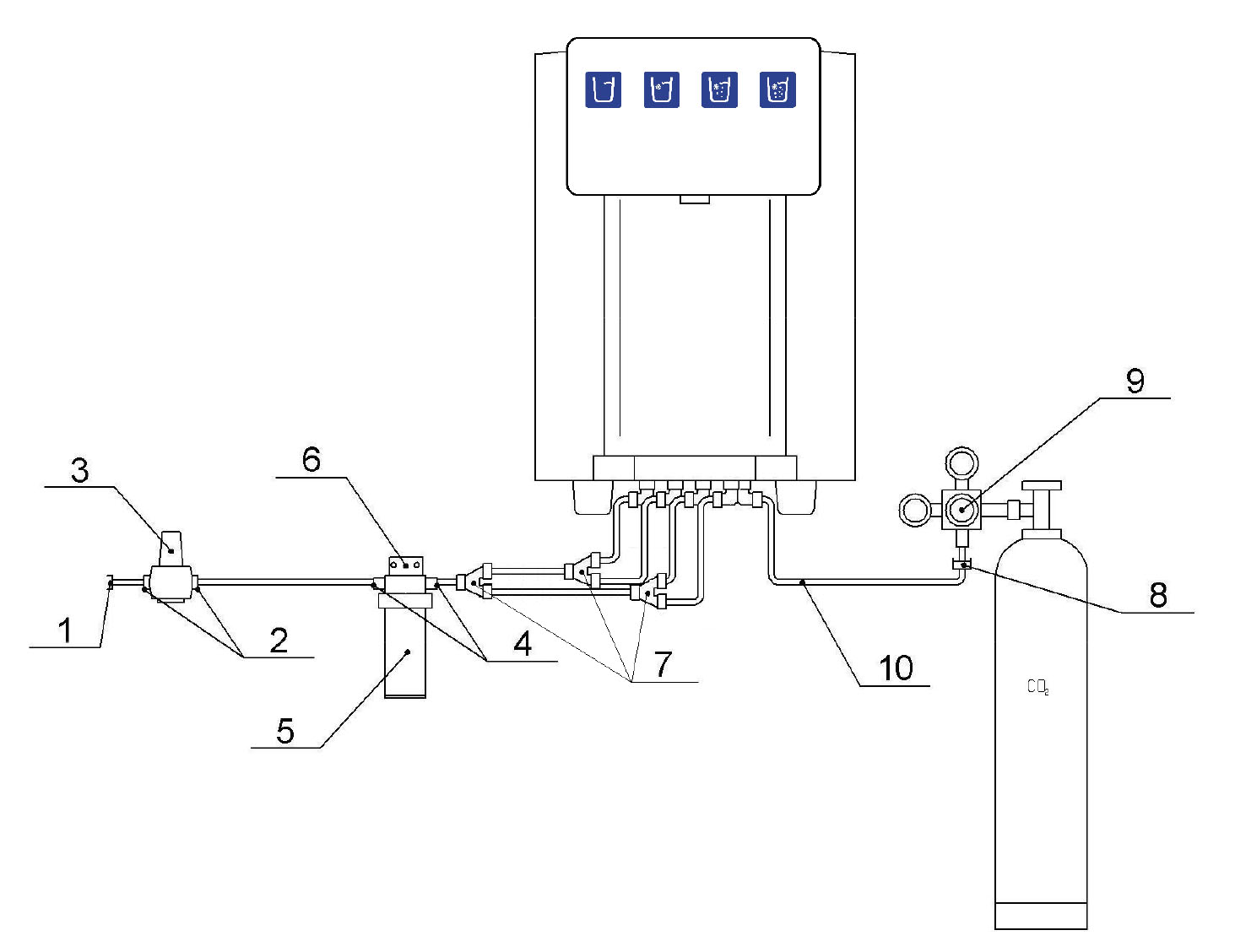

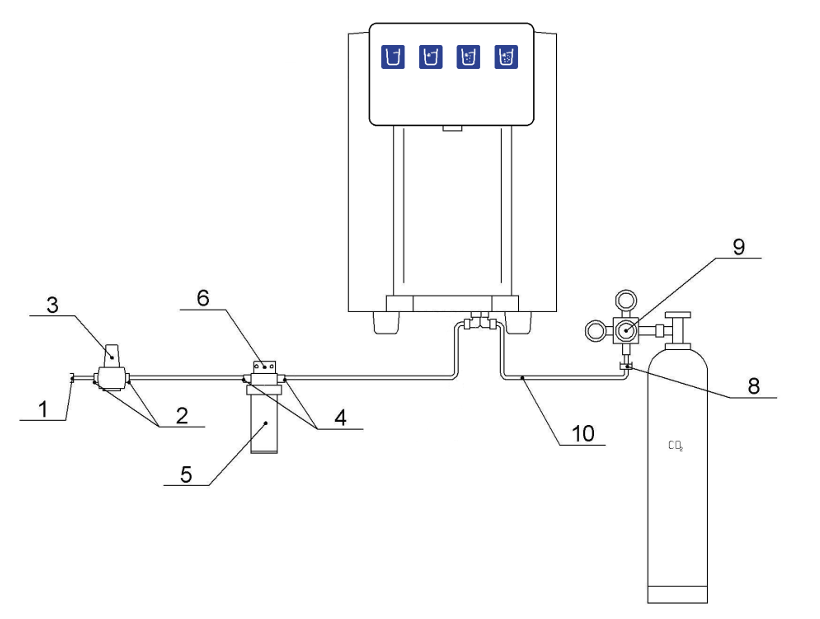

To connect the soda dispenser, the following is needed:

Description:

1. 3/8-1/2 BSP male quick-connect fitting
2. 3/8-3/8 BSPT male-to-male coupling
3. H2O pressure reducing valve
4. 3/8-1/4 male quick-connect fitting
5. H2O filter
6. Filter holder
8. 3/8" or 5/16" male-to-1/4" MFL quick-connect fitting
9. CO2 pressure regulator
10. Calibrated 3/8" or 5/16" hose

You should know:

• The CO2 bottle and the reducing valve are not included with the soda dispenser. You need to purchase a Connection Kit for Soda Dispensers.

CO₂ cylinder specifications:

• 2 kg - dimensions: 540 mm height, 104 mm diameter - approx. 280 L of sparkling water
• 6 kg - dimensions: 560 mm height, 178 mm diameter - approx. 845 L of sparkling water
• 10 kg - dimensions: 670 mm height, 200 mm diameter - approx. 1,410 L of sparkling water
