Dispenser TAP T3
Code: 4783/80 4783/82 4783/84 4783/86 DISPP0063 4783/CER2 4783/CER3 4783/CER4 4783/81 4783/83 4783/85 4783/87 DISPP0064 4783/NER2 DISPP0054 DISPP0047 Choose variantRelated products
Product detailed description

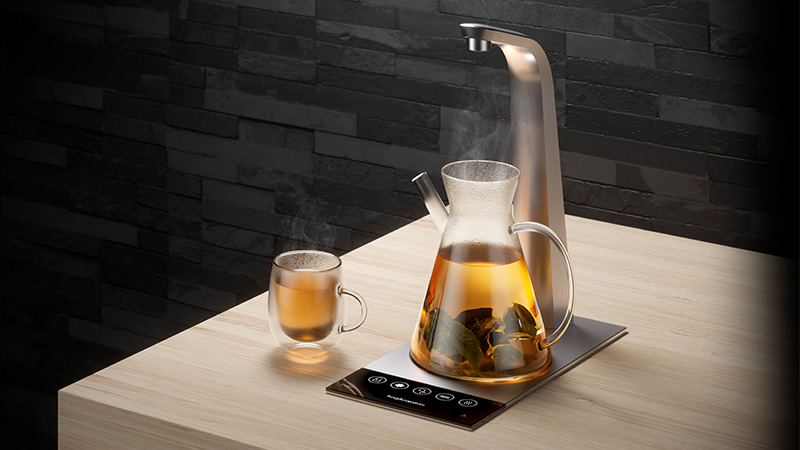

High-capacity and comfortable water dispenser TAP T3 with an elegant minimalist tap made of stainless steel. The compact dispenser can be easily placed under the kitchen counter. Thanks to the high capacity of the device, you have access to up to 80 l of water per hour. An option for antibacterial UV filtration ensures the safety of the dispensed water.
You can easily control the water dispensing by pressing a button on the control panel.
.jpg)

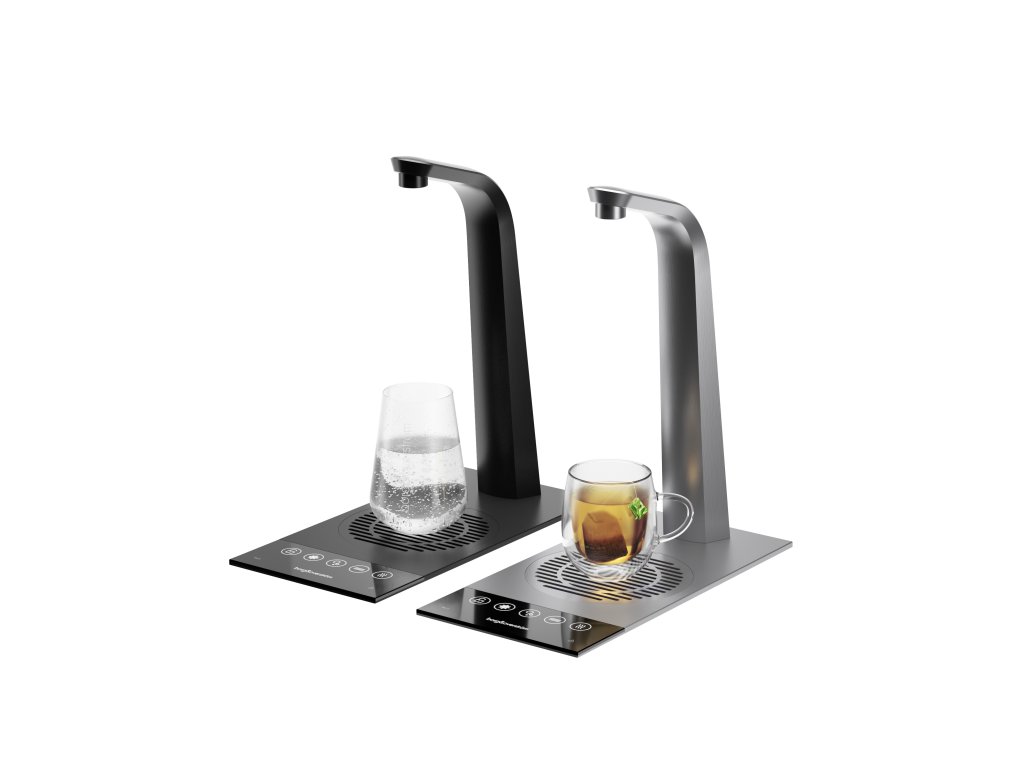

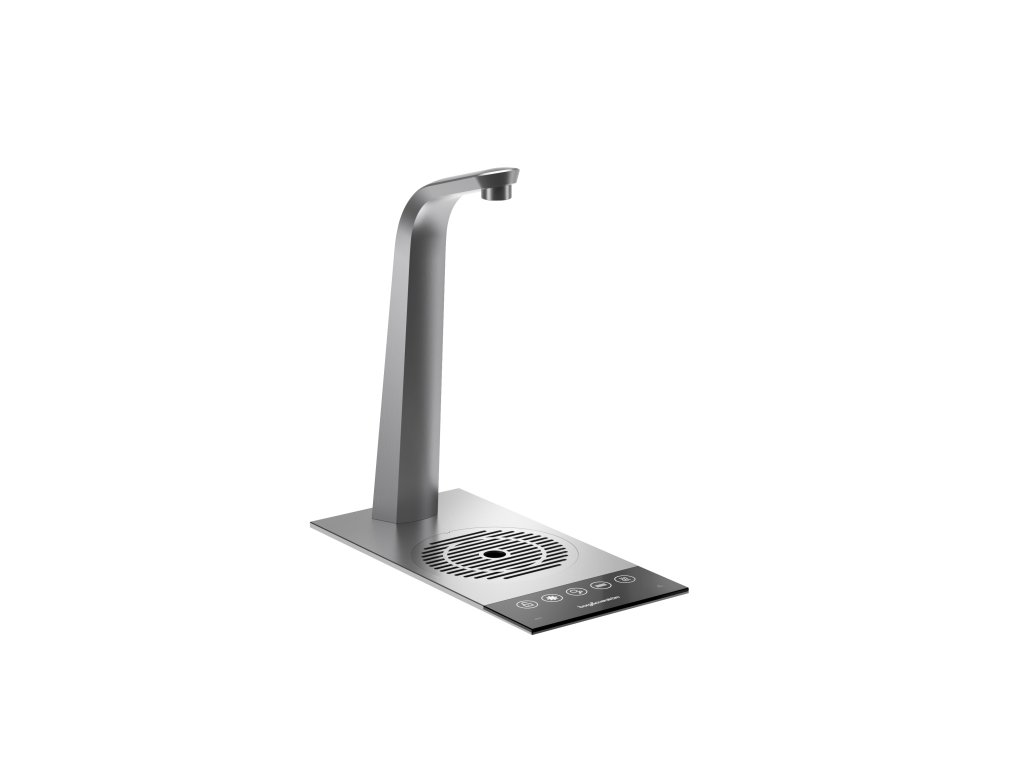

The designer tap can be chosen in black or silver color.
Available in two types based on performance:
- TAP T3 50 - dispensing 50l/h
- TAP T3 80 - dispensing 80 l/h
You can choose from four water dispensing options:
- CHA (chilled, hot, room temperature)
- CHA + UV (chilled, hot, room temperature + UV filtration)
- CSAH (chilled, sparkling, hot, room temperature)
- CSAH + UV (chilled, sparkling, hot, room temperature + UV filtration)
ADVANTAGES:
- high capacity
- low energy consumption
- compact size of the device
- elegant, minimalist design
- discreet, hygienic control panel
- easy to use
PACKAGE CONTENT:
- water dispenser
- tap with control panel
WATER DISPENSING (depending on the selected variant):
- chilled
- room temperature
- sparkling
- hot
TECHNICAL PARAMETERS:

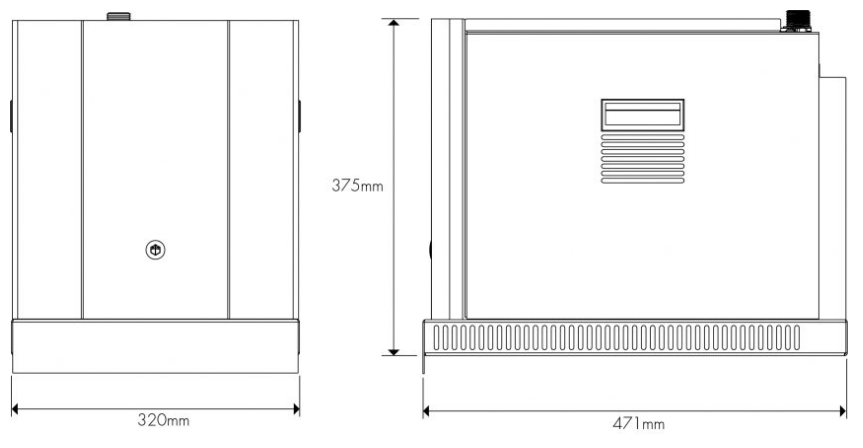

- Dispenser dimensions (w x d x h): 320 x 375 x 471 mm

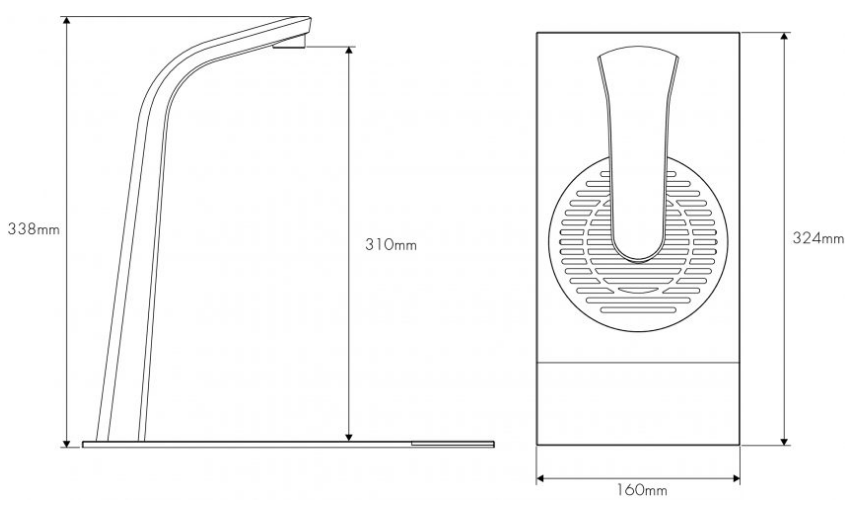

- Tap height: 338 mm
- Maximum consumption: 1.7 kW
- Material: stainless steel
- Voltage: 50 Hz/ 230 V
- Chilled water temperature: 2°C
- Hot water temperature: 92°C
- Flow rate: 80L/h or 50L/h depending on the type
- Hot water flow: 16L/h
- For cutting the hole for the drip tray in the countertop, an A3 drawing is included
You should know:
- The CO2 bottle and the CO2 pressure reducer are not included with the dispenser.
- Maximum water pressure: 4 bar
- If the water pressure exceeds 4 bars, the automatic system needs to be equipped with a pressure reducer; we recommend a pressure reducer with a manometer
- If the water pressure exceeds 3 bars, we recommend purchasing a Hunter pressure reducer
CO2 cylinder specifications:
- 2 kg - dimensions: 540 mm height, 104 mm diameter - approx. 280 L of sparkling water
- 6 kg - dimensions: 560 mm height, 178 mm diameter - approx. 845 L of sparkling water
- 10 kg - dimensions: 670 mm height, 200 mm diameter - approx. 1,410 L of sparkling water
Recommendations for filtration (not included with the dispenser):
- Antibacterial carbon filter with silver or a carbon filter with scale elimination for hard inlet water.
- Recommended service for changing the filter cartridge once every 6 months
Additional parameters
| Category: | Sodabar |
|---|---|
| According to the type of water: | Room, Chilled, Sparkling, Hot |
| According to use: | For cafes, restaurants, and hotels |
| Execution: | Built-in / Under the counter |
